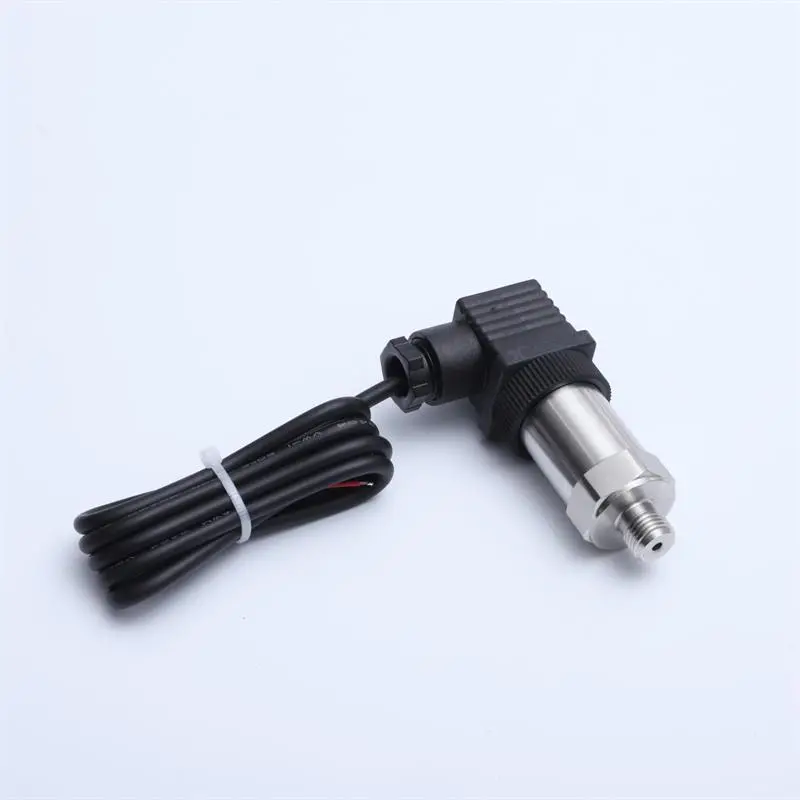

We are a Chinese Factory, This series of sensors uses the advanced high-precision and high-stability diffused silicon core, equipped with ASIS high-performance amplifier circuit, after thousands of fatigue shocks, high and low temperature cycle aging and precise digital temperature compensation process, and then complete stainless steel sealing and welding (Laser welding) refined.
High-quality sensors, strict calibration process, and perfect assembly process ensure the excellent quality of the product.It is especially suitable for pressure measurement of hydraulic pressure, pneumatic pressure and other media, even for harsh environments such as sewage, steam, mildly corrosive, and gas measurement.
Key Attributes
| Current/Voltage Pressure Transmitter Specifications | |||
|---|---|---|---|
| Name | Current/Voltage Pressure Transmitter | Shell Material | 304/316 Stainless Steel |
| Core Category | Ceramic core, diffused silicon oil-filled core (optional) | Pressure Type | Gauge, absolute, or sealed gauge pressure type |
| Range | -100 kPa ~ 0…20 kPa up to 100 MPa (optional) | Temperature Compensation | -10 ~ 70°C |
| Precision | 0.25%FS, 0.5%FS, 1%FS (includes non-linearity, repeatability, hysteresis) | Operating Temperature | |
